Ignition Solutions

Stick Coil


Plug Top Coil

Reliable and High Efficient Energy Coils (Stick Coil)

Technical Data (Typical)

  • Supply volta ge : 14.0 v
  • Operating temperature : -30°c to 130°c
  • Primary resistance : 0.98 ± 5% Ω
  • Secondary resistance : 7.2 ± 10% k Ω
  • Secondary voltage with 30 pf load: 30 kv min
  • Primary current raise time : 1.8 ± 0.4 ms to reach 6.5 a
  • Energy( INTO 1000V ZENER ) : 30 mj
  • Weight : 160 g

Features

  • Coil goes into the spark plug hole
  • No h/t cable : compact layout / better appearance
  • No h/t cable : better reliability
  • Dli system for odd cylinder engine
  • Higher numbers of multiple spark is possible
  • Negative discharge / no waste spark
  • No waste spark ; no possibility of back-fire

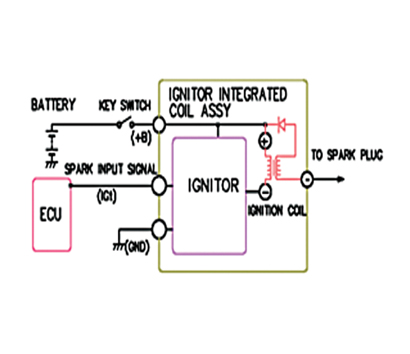

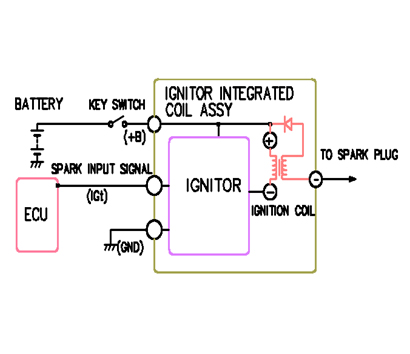

Wiring Diagram


Reliable and High Efficient Energy Coils (Plug Top Coil)

Technical Data (Typical)

  • Supply voltage : 14.0 v
  • Operating temperature : -30°c to 130°c
  • Primary resistance : 0.6 ± 5% Ω
  • Secondary resistance : 10.8 ± 10% k Ω
  • Secondary voltage with 30 pf load : 30 kv min
  • Primary current raise time : 2.7± 0.4 ms to reach @ 7A
  • Energy ( INTO 1000V ZENER ) : 70 mj
  • Weight : 195 g

Features

  • Higher Spark Energy (70mJ) is suitable for Direct Injection Engines
  • In-Built ignitor (Optional)
  • No H/T Cable: Compact Layout/ Better Appearance
  • Better Reliability
  • DLI System for Odd Cylinder Engine
  • Negative discharge/ No waste spark
  • No possibility of back fire
  • Higher Reliability due to simplified design

Typical Performance Curve
